Optical Smoke Detectors and Multi-sensors

EA 318 series optical smoke detectors are designed to respond to a wide spectrum of fires and ease installation. The EA318 series multisensors use Advanced Photoelectric Technology in conjunction with a fixed temperature heat sensor to further extend its capabilities as a smoke detector. Every unit is individually tested and calibrated to ensure high reliability and prevent false alarms.

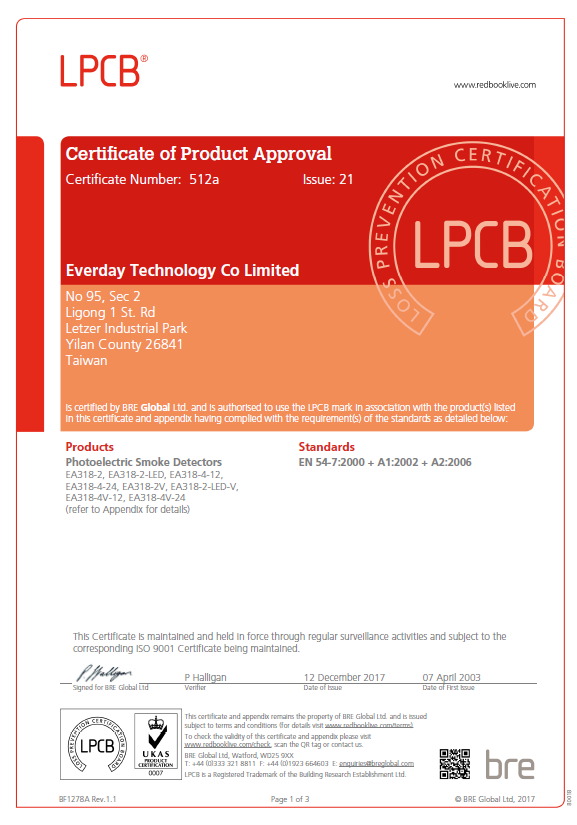

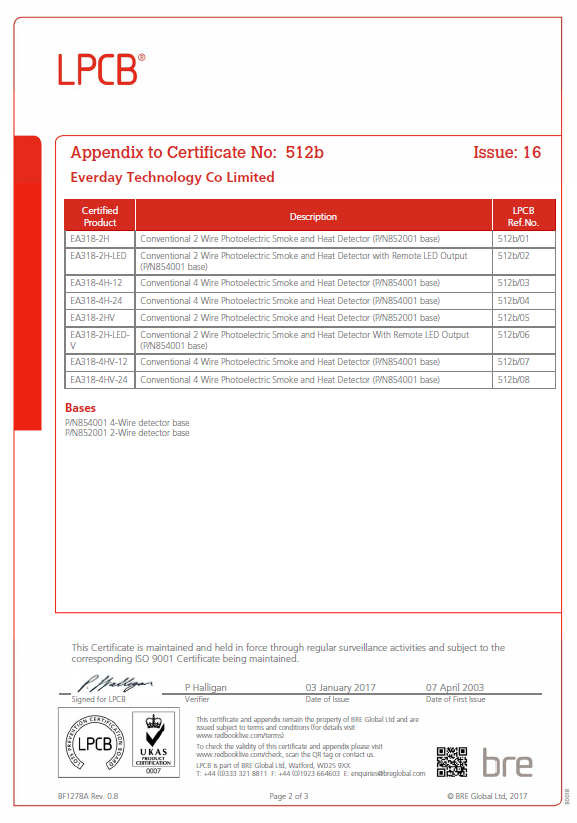

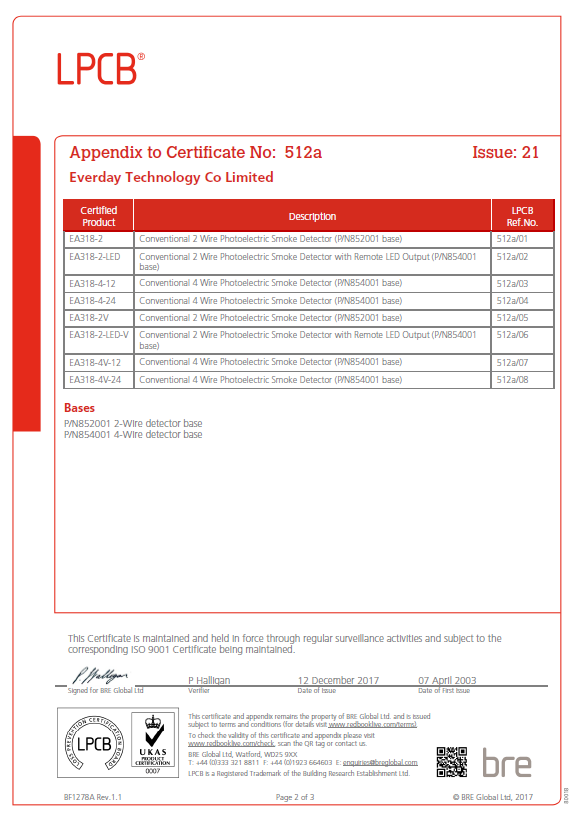

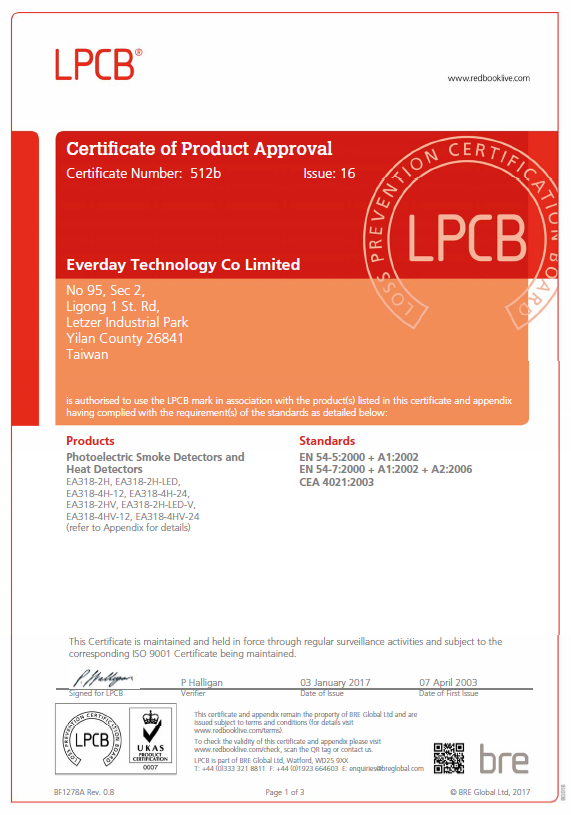

Approvals

EN 54-5/7:2000

The Range

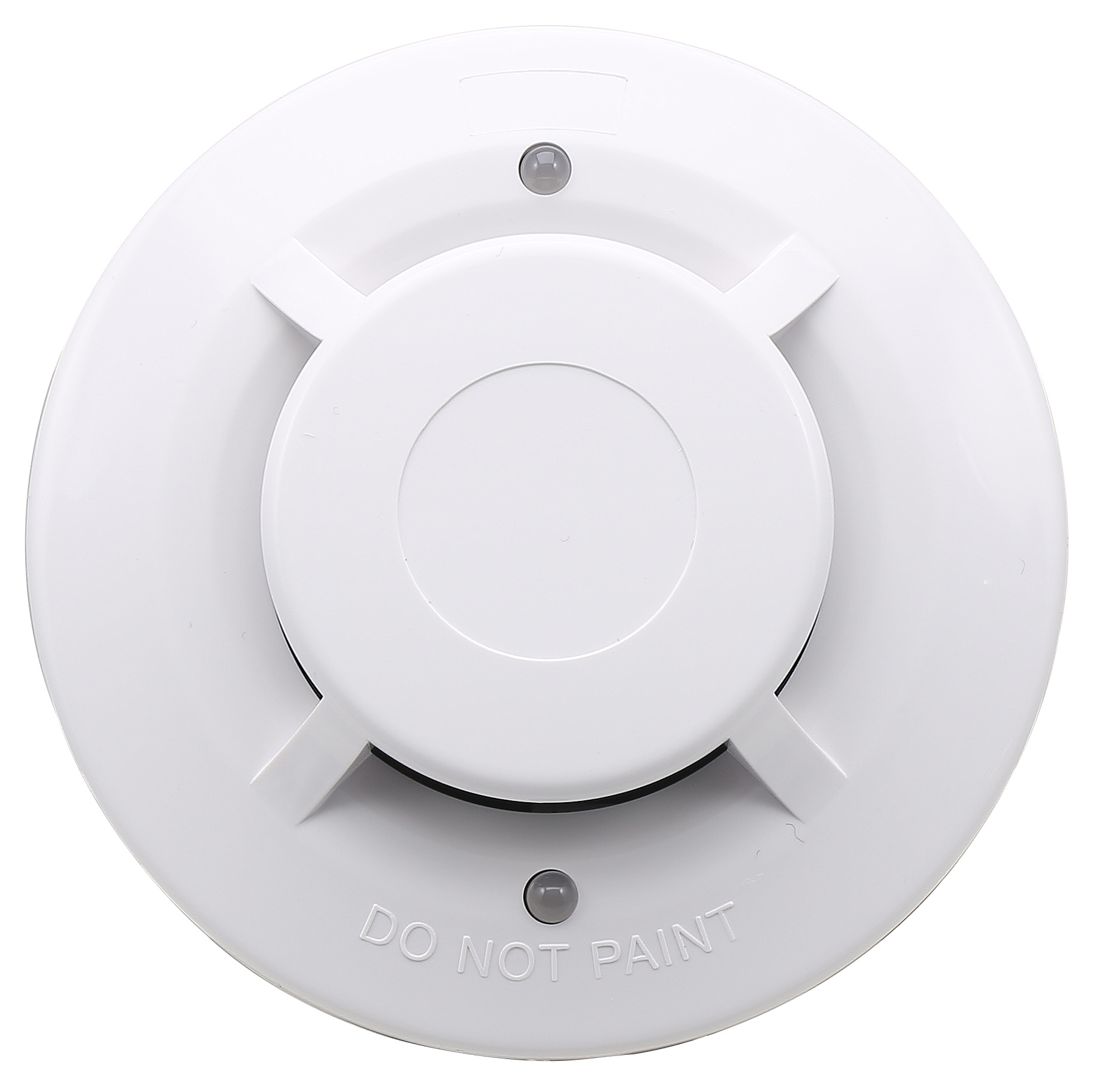

EA318-2	2 wire optical Smoke detector
EA318-2-LED	2 wire optical Smoke detector with remote LED indicator output

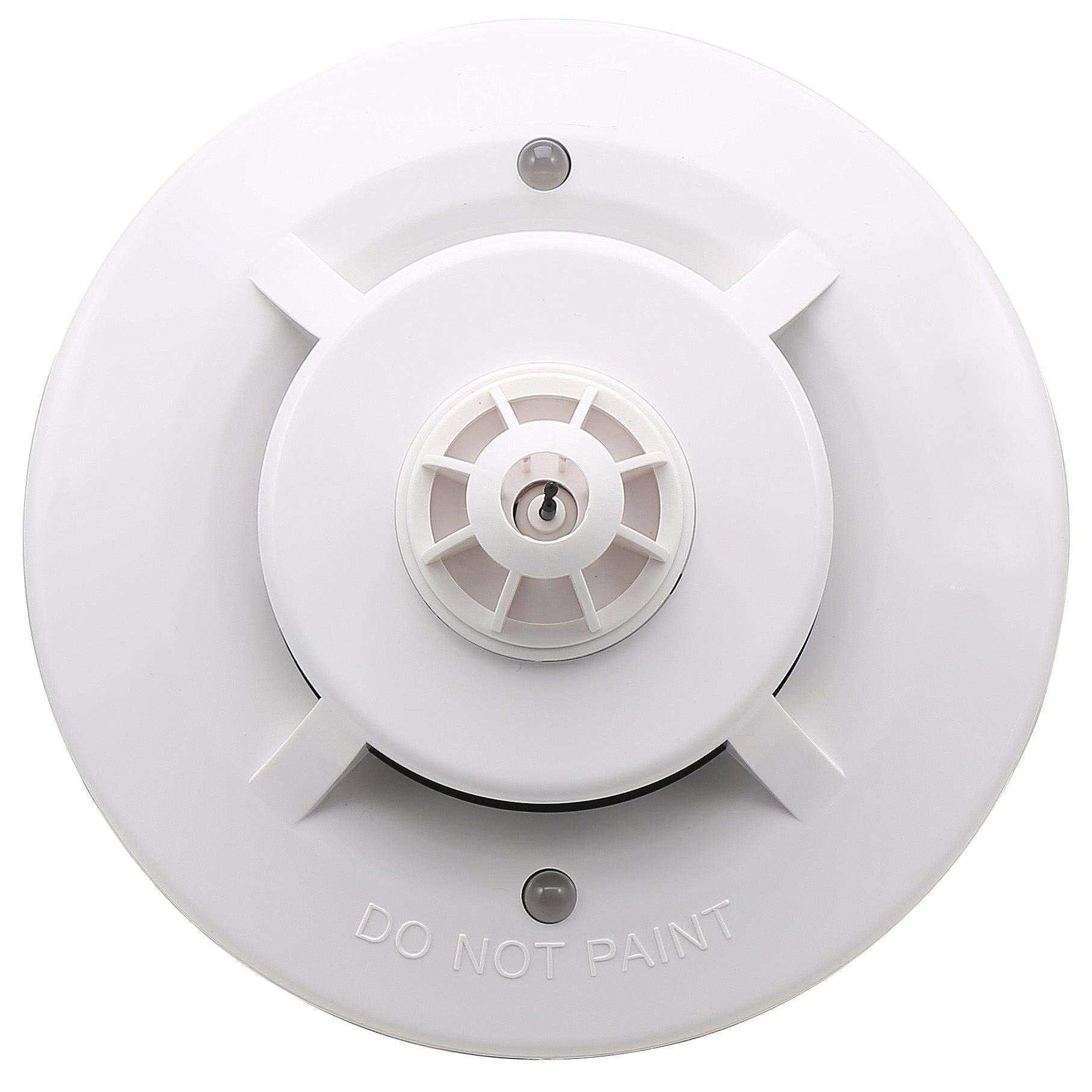

EA318-2H	2 wire optical Multi-sensor (smoke & heat)
EA318-2H-LED	2 wire optical Multi-sensor (smoke & heat) with remote LED indicator output
EA318-4	4 wire optical Smoke detector
EA318-4H	4 wire optical Multi-sensor (smoke & heat)



Features and Benefits

• Advanced photoelectric smoke sensing technology
• Multi-sensor is used for a wide range of applications and is highly immune to false alarm
• Durable sensor head; excellent smoke access
• Dual LEDs for 360O visibility
• N/C (normal close) or N/O (normal open) selectable relay output
• Easy installation and maintenance
• Modern design for any decor (white and beige colors)
• Five-year limited warranty

Options

• AR (Auto Reset) function for security systems: EA-318-AR line.
• Buzzer: EA-318-B line.
• Sensor base: standard and Schottky diode.
• Remote LED.
• EN54 Multiple Listing service available.

Specification

Model	2/4 Wire	Thermal	Volt. DC	Standby Current (Max)	Alarm Current (Max)	Surge Current (Max)	Start-Up Time (Max)	Permissible(Max)	Emitting Duty	Alarm Contact	Base Model
EA-318-2	2		12~35V	35 µA	70 mA	40µA	60 sec	80 mA	3~5 sec		P/N852001
EA-318-2-LED	2		12~35V	35 µA	70 mA	40µA	60 sec	80 mA	3~5 sec		P/N854001
EA-318-4-12	4		10.2~13.8V	35 µA	35 mA		60 sec	80 mA	3~5 sec	From A/B	P/N854001
EA-318-4-24	4		20.4~27.6V	35 µA	35 mA		60 sec	80 mA	3~5 sec	From A/B	P/N854001
EA-318-2H	2	135ºF (57ºC)	12~35V	35 µA	70 mA	40µA	60 sec	80 mA	3~5 sec		P/N852001
EA-318-2H-LED	2	135ºF (57ºC)	12~35V	35 µA	70 mA	40µA	60 sec	80 mA	3~5 sec		P/N854001
EA-318-4H-12	4	135ºF (57ºC)	10.2~13.8V	35 µA	35 mA		60 sec	80 mA	3~5 sec	From A/B	P/N854001
EA-318-4H-24	4	135ºF (57ºC)	20.4~27.6V	35 µA	35 mA		60 sec	80 mA	3~5 sec	From A/B	P/N854001



Smoke/Heat Sensitivity	EN 54-5 / 7:2000 standard
Detection Range	100 m2 rating for smoke sensor; 50 m2 rating for heat sensor
Start-Up Current	70 µA (Max)
Alarm Impedance	For 2-wire models: 100    + 3V max;560   + 3V max (red LED open circuit)
Reset Voltage	Less than 1 volt
Reset Time	Less than 1 second
Alarm Indicator	Continuously emitting red light



Temperature Range	-10°C to + 50°C
Remote Output	15 mA max., diode gate
Humidity	0 to 95% RH, noncondensing
Alarm Contact	(for 4-wire)N/O or N/C Operation 1.0 A @ 30Vdc / 0.5 A @ 125 Vac
Dimensions	10 mm (D) x 46 mm (H) with base
Weight	130g / set with base
